#12030 - Universal Joints & Coupling Assortment

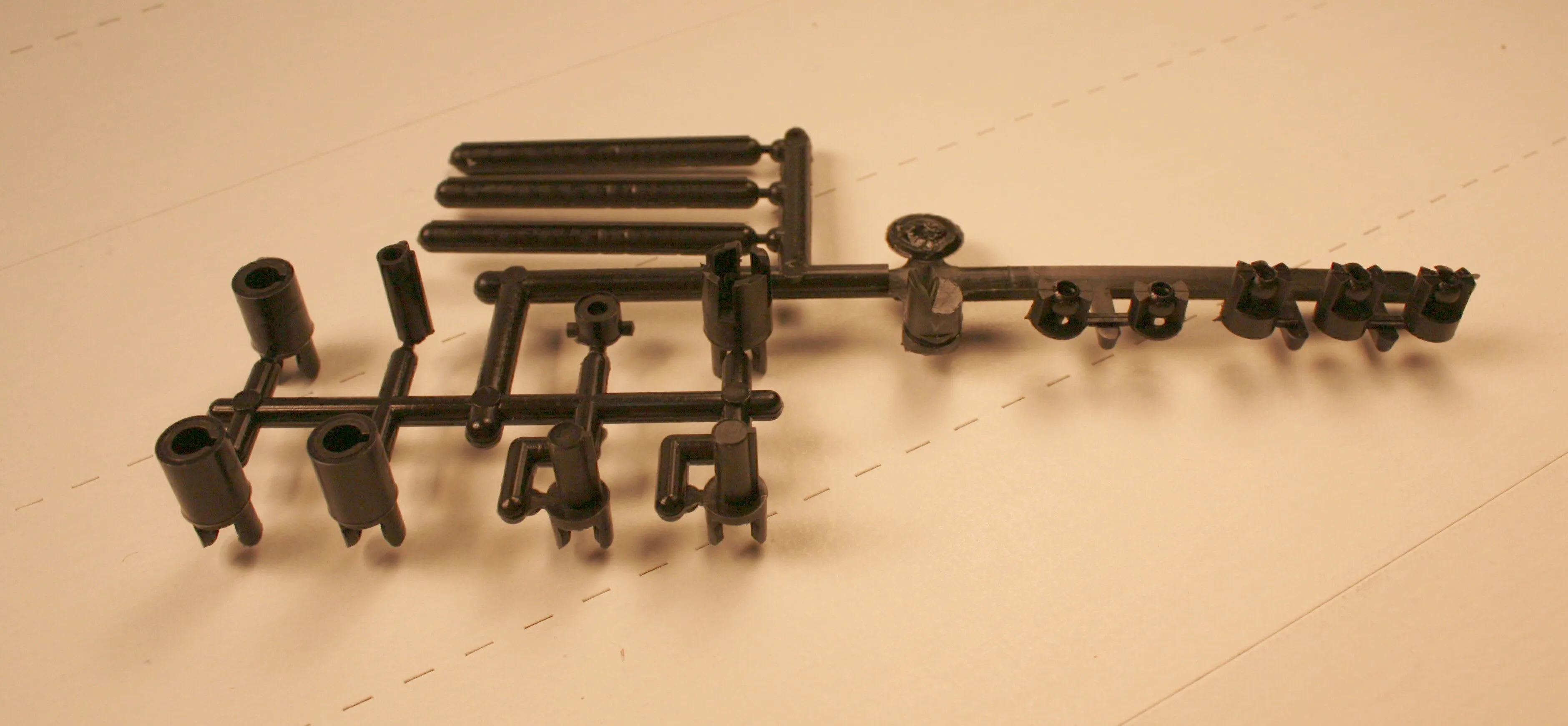

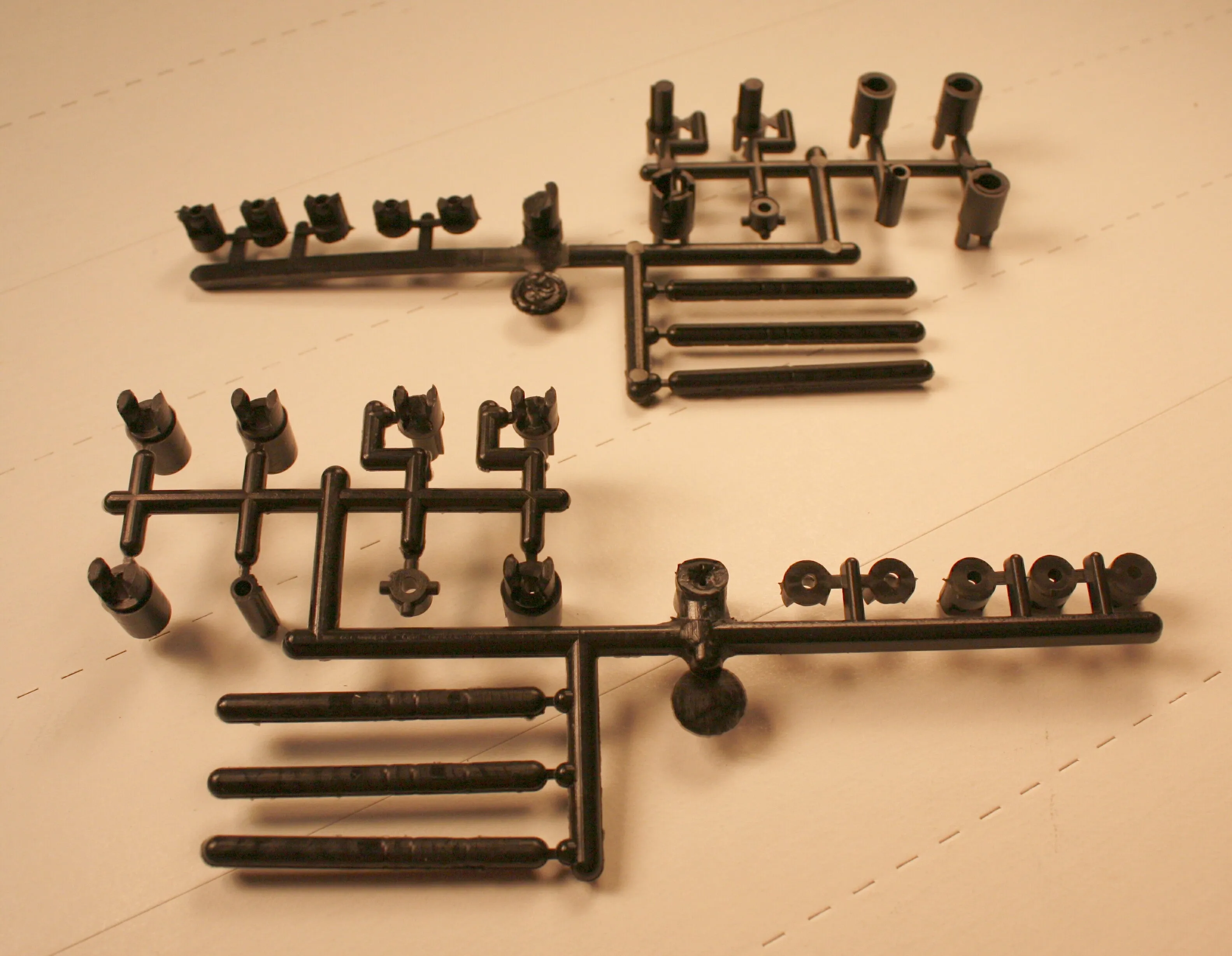

Universal coupling assortment can be used for many of your repowering projects. 32 piece kit includes assorted male and female universal joints and various length splines molded in Delrin plastic. Can be used to replace Athearn ball and socket drive line components and will also work with Aline with ball coupling installed. Ball diameter is .156 " or 3.93mm
This kit is excellent for replacing early steam and diesel models that used plastic tubing to connect the drive line. Kit will do at least two locos. Most all the couplings in the set have a small 2mm hole in them. So you can drill couplings out to whatever size you need.
I would use a numbered drill set so you start small and
increase hole size until you get the tight press fit you need.
This coupling set is very universal and you should be able to make it work for your projects.
We would suggest, instead of trying to make them work with what you currently have, just use the pieces in the set to make-up what you need.
These couplings will work with the ball and socket type couplings, but will not work with the Hex Drive couplings, or Hex Drive flywheels, see
